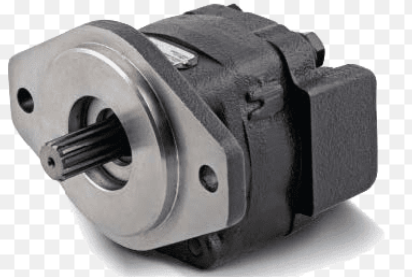

Pompa Hidrolik / Gear Pump Parker P315

Technical Specifications Operating Pressure: up to 3500 psi, up to 241 bar Flow Rate: n/a Displacement: up to 41 cm3/rev, up to 2.5 inch3/rev Body Material: Cast Iron Drain Option: No Charge Pump Included: No Circuit Path: Open Configuration: Single, Tandem, Multiple Control Method: Relief, Load Sense, Priority, Unloading Energy Recovery Capability: No Filter Included: No For Fluid Type: Standard Hydraulic Fluids, Phosphate-ester, Water-Glycol Maximum Displacement: 41 cm3/rev, 2.5 inch3/rev Maximum Flow Rate: n/a Maximum Fluid Temperature: 80 °C, 180 °F Minimum Fluid Temperature: -20 °C, 0 °F Maximum Noise Level: n/a Maximum Operating Pressure: 241 bar, 3500 psi Radial Load Capacity: Consult Parker Maximum Operating Speed: 3000 RPM Maximum Kinematic Viscosity: 7500 SUS Minimum Kinematic Viscosity: 50 SUS Weight: 10 kg (Max), 22 lb (Max) Media: n/a Mounting Option: SAE, ISO, DIN Port Connection: SAE, ISO, NPT, BSPP, ODT Port Type: Flange, Straight Threaded Port Location: Side Ports, Rear Ports Pump Type: Gear, Fixed Direction of Rotation: Clockwise, Counterclockwise, Bi-Rotational Sensor Type: n/a Shaft Type: SAE, ISO, DIN, Industry Specific Thru-Drive Capability: No Length: varies by configuration
